CBS730iDS1 - FRD1000 Rotary Band Sealer, Vertical and horizontal operation. Ink Printing Sealing Machine. Digital Control. £1050.00 Exc Vat

CBS730iDS1

FRD1000

Rotary Band Sealer

£1050.00 + Vat

Ink Printing Sealing Machine

All-in-one continuous high-speed bag sealing system.

Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer.

Digital Control

For maximum bag height sizes 13" (330mm)

12mm Wide seal

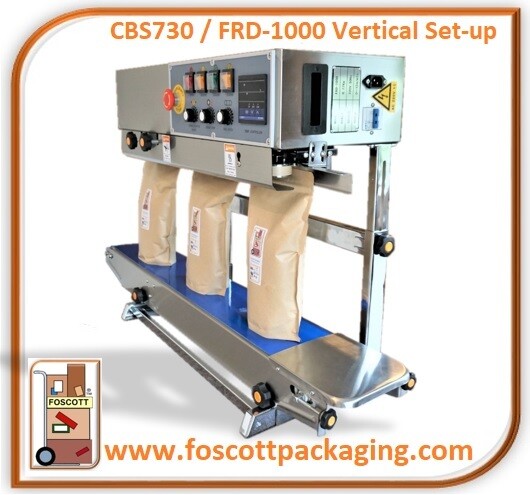

Vertical and horizontal operation.

Fitted with a hot ink coder.

Use hot ink rolls

Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.

PID Digital Temperature Controller: 0 - 300°C (572°F) with dual alphanumeric displays

(target & current temperature).

Stainless Steel construction.

Convertible to horizontal and to vertical operation.

Makes strong, professional-looking airtight seals like those made by costly high-speed automatic systems.

Seals thermoplastic materials including Polyethylene (PE),

Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations

and cellulose (ie. Cellophane).
Capable of speeds of up to 16 mt/min, depending on product / bag seal characteristics.
Seals bags that are standing and bags that are laying on their side.
Includes motorized belt conveyor with synchronized speed adjustment.

All spares are carried in stock.

Extremely easy to use

Non-stick woven PTFE-type guide belts.

Extra wide 12mm seal.

Bag height range: 4 – 13 inches (100 – 330 mm H).

Conveyor Width 6 inches.

Equipped with electronic adjustable speed control.
Adjustable 2-Way pulley system for optimal bag stability and embossing clarity.
Equipped with bag entry guide for easy bag feeding and straight seals.
Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.
Knurled pressure rollers with variable pressure adjustment.
Sealing method: constant heat.
Single pair of bronze sealing bars.
PID Digital Temperature Controller: 0 - 300°C (572°F) with dual alphanumeric displays (target & current temperature).
Control panel includes E-Stop (industrial quick-stop switch).
Rust-inhibiting Stainless Steel construction.

Dual-orientation system includes vertical and horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer).
Conveyor height from conveyor to center of sealing belt (at vertical configuration): 100 to 330 mm (4 inches to 13 inches)

Other Specifications:
Fast Warm-Up Time.
Simple to Use - Minimal Operator Training.
Electrical: Supplied in 220v.
Machine power: 650 Watts10 amp protection power surge breaker.
Machine Size: 940mm L x 450mm W x 550mm H.
Boxed Size: 965mm (38 inches) L x 521mm (20.5 inches) W x 419mm (16.5 inches) H.
Machine Weight: 60 lbs (27Kg).
Boxed Weight: 76 lbs (35Kg)

Use hot ink rolls

All spares are carried in stock.
