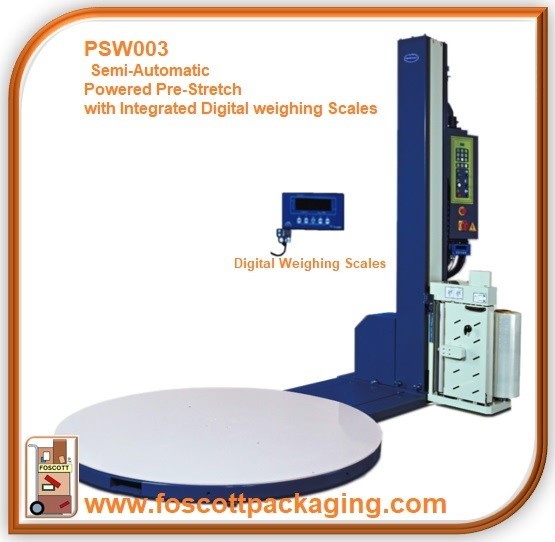

PSW003 Optimax® Power Pre-stretch Pallet Wrapping Turntable With Integrated Digital Weighing Scales, £10630.00 + Vat

PSW003

Optimax® Power Pre-stretch Pallet Wrapping Turntable

With Integrated Digital Weighing Scales

£10630.00 + Vat

Powered pre-stretch extends film length to up to 300% for more secure wrapping and reduced film use.

1 Meter of film stretches to 4 meters.

Specifications

Powered pre-stretch extends film length to up to 300% for more secure wrapping and reduced film use.

Single start/stop turntable position and magnetic brake for easy loading/offloading.

180 degree rotating electronic control panel.

fully programmable wrapping configuration.

soft start and stop functions.

Advanced soft wrapping regulates the film tension as the pallet rotates to avoid over-tensioning on corners, which can cause carton damage.

Mid-cycle reinforcement function enables greater strength at required points.

Top cover pause function allows insertion of separate top cover before wrapping resumes.

Automatic film cut-off.

Optional loading ramp PSWR for pallet trucks.

Turntable height 82mm

Turntable diameter 1650mm

Maximum loading weight 2000kg

Maximum wrapping width/length 1050 x 1050mm

Maximum wrapping height 2000mm

Maximum turntable speed 12rpm

Power supply 240V 13A

Power consumption 1.2kW

Dimensions (W x D x H) 2400 x 1500 x 2345mm

Weight 450kg

Option of approach ramp - PSWR
