VS300 Tray Lidding Machine - Thermosealer, DIE PLATE VERSION, £786.52 + Vat

VS300

Tray Lidding Machine - Thermosealer

DIE PLATE VERSION

£786.52 + Vat

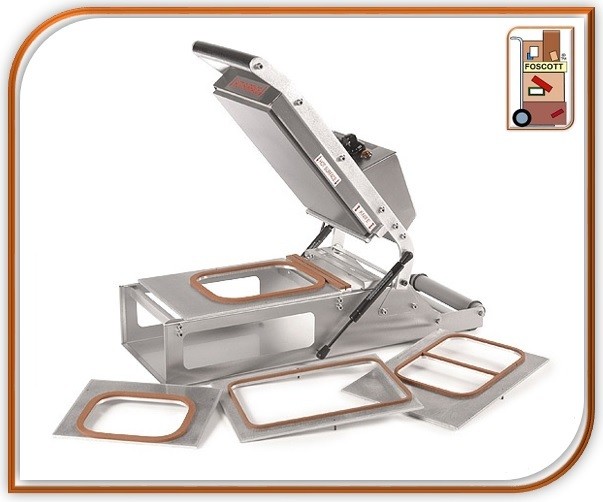

These stainless steel machines feature adjustable temperature control, PTFE

coated non-stick sealing plate, twin roll film supports with guide rings and twin gas spring head lift.

The VS300 model is supplied with a die plate custom made for the tray to be sealed, with additional die plates available upon request.

The trays are sealed with either a peelable film or a sealable (welded) film.

The machine is switched on and the required temperature set on the regulator, when the temperature has been reached, the film which is mounted at the back of the machine on two support rollers is pulled over the top of the tray to be sealed which had been placed in the die plate.

The sealing head is then lowered by hand and pressed down to seal the film to the tray, at the same time the film is cut from the main roll.

The sealing head is then raised to the open position and the tray removed.

The VS300 lidding machine will work with all types of sealable food trays and films up to a maximum width of 190mm with a maximum tray length of 250mm.

The VS type of tray sealing machine installations are typically found in supermarkets, local butchers and grocery shops producing ready meals, fresh and cooked meats, fish and vegetables.

Product Features

Adjustable temperature control.
PTFE coated sealing plate.
Stainless steel fabrication.
Twin reel film supports.
Quick change die plates. (No tools required)

VS300

Technical Specifications

Maximum film width - 190mm
Sealing area - 190mm x 250mm
Electric - 240v / 3amp
Machine dimensions - 480 x 255mm
Weight - 9kgs
